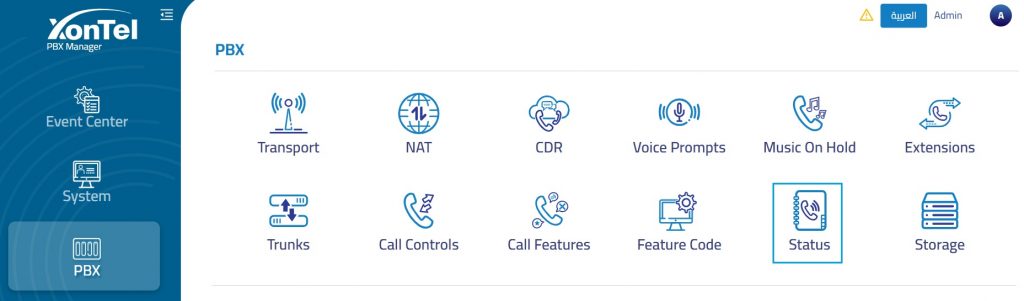

The Status section is used to monitor the current availability of extensions and trunks within the PBX system. It provides administrators with a quick operational view of which endpoints and SIP trunks are online, offline, or available for communication.
This section helps administrators verify registration status, troubleshoot connectivity issues, and confirm that extensions and trunks are ready for call handling.
Extension
The Extension tab displays the current registration and availability status of all configured extensions.
- Name: Extension number.
- Status: Indicates whether the extension is Online (registered and active) or Offline (not currently registered).
- Address: Displays the SIP URI of the extension, including the IP address and port used for registration.
- Transport: Specifies the protocol used for SIP signaling (e.g.,
transport-udp).
Trunk
The Trunk tab displays the current availability and registration status of SIP trunks configured in the PBX system.
- Name: Identifier of the trunk (e.g., remote PBX or SIP provider).
- Status: Indicates whether the trunk is Online (registered/connected) or Offline.
- Address: SIP URI including trunk name, IP address, and port.
- Transport: Transport method used for SIP communication (e.g.,
transport-udp).
